2 Inch Hygienic Ball Valve Stainless Steel Material For Production Pipeline

Nyhau Fluid Equipment Co.,Ltd

2 Inch Hygienic Ball Valve Stainless Steel Material For Production Pipeline

Brand Name : NYHAU

Certification : 3A,CE,ISO,FDA

Place of Origin : KunShan,China

MOQ : 1PC

Price : Negotiable

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 10000PCS/Mouth

Delivery Time : 5-8 work days

Packaging Details : Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)

Specifications : 3A ASME BPE

Connection : Welded/Clamp

Type : Sanitary Ball Valves

Materials : TP316L

Size : 1'' - 4''

Application : Industrial Usage, Water Industrial Usage, Household Usage

Contact Now

2 Inch Sanitary Ball Valves Stainless Steel Material For Production Pipeline

Our Sanitary Clamp, Pipe Clamp, Tube Clamp, Tri Clamp, Tri Clover Clamps, Stainless Clamp, Screw Clamp, Hose Clamp, Tube Hanger, Pipe Hanger include the types of 13LAH Single Pin Heavy Duty Clamp, 13MHHM Double Pin Heavy Duty Clamp, 13MHHVM Sch5 Single Pin Heavy Duty Clamp, 13MHP High Pressure Clamp, 13MHHS 3-PC Segmental Clamp, 13IL I-line Clamp, 13ILB Bolted I-Line Clamp, 13IS I-Line Heavy Duty Clamp, Round Tube Hanger, Hex Tube Hanger, …and we have all kinds of Wing Nuts for clamps for choice. A Tri Clamp connection consists of two Ferrules joined by a Clamp with a Gasket. You can buy correct tri clover clamp with your ferrules or you also can use our clamps to match with other standard ferrules.

Fitting ends:


BS, DIN, SMS, A270, Weld ends, Male ends and Clamp ends
Working pressure :


* -0.9 to 10 Bar for cast body


* -0.9 to 20 Bar for forged body


Working temperature:


-10oC up to 150oC


Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

Stainless Steel Sanitary Tubing and Tube Fittings Highlights:

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

Alloy: T304 or T316L


Sizes: 1.50", 2.00", 3.00" OD


Seats: EPDM or Silicone


Finish: Polish to a 32 Ra ID/OD


Handle Interchanges to either side


Field Serviceable


100% Hydraulic Pressure Tested


Economical Price for all sizes from 1.5" -- 4"

DIMENSION

DN A B D H L
20 66 78 50.5 84 130
25 66 78 50.5 84 130
32 66 78 50.5 84 130
38 70 86 50.5 88 130
51 76 102 64 96 140
63 80 115 77.5 102 150
76 84 128 91 110 150
89 90 139 106 115 160
102 104 155 119 122 160
108 108 159 119 125 160

Technical Details:

OUTSIDE DIAMETER (MM) WALL- THICKNESS (MM) NOMINAL OUTSIDE DIAMETER NOMINAL WALL THICKNESS DIMENSIONAL STANDARD
6,35 0,89 1/4" 0,035" ASME BPE
9,53 0,89 3/8" 0,035" ASME BPE
12,70 1,65 1/2" 0,065" ASME BPE
19,05 1,65 3/4" 0,065" ASME BPE
25,40 1,65 1" 0,065" ASME BPE
38,10 1,65 1 1/2" 0,065" ASME BPE
50,80 1,65 2" 0,065" ASME BPE
63,50 1,65 2 1/2" 0,065" ASME BPE
76,20 1,65 3" 0,065" ASME BPE
101,60 2,11 4" 0,083" ASME BPE
152,40 2,77 6" 0,109" ASME BPE

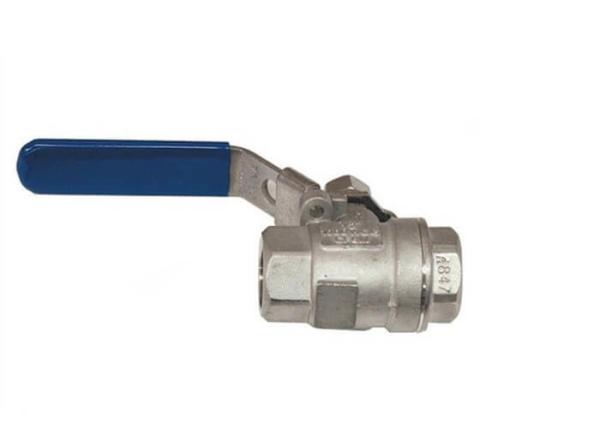

2 Inch Hygienic Ball Valve Stainless Steel Material For Production Pipeline
